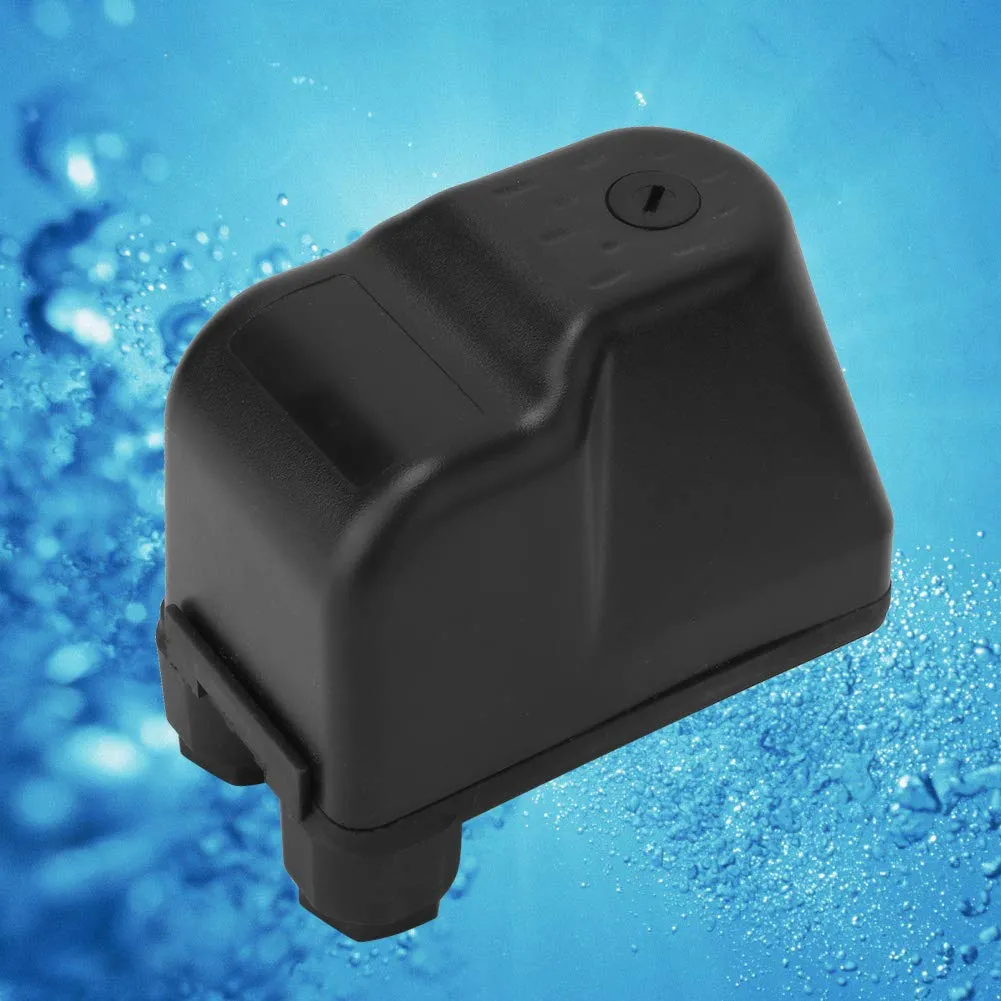

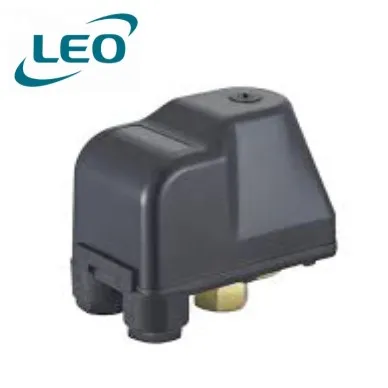

LEO PS-02C , 220V - 250V, Automatic Pressure Switch for Water Pump

Product details of

• LEO PRESSURE SWITCH
• MODEL :- PS-02C
• VOLTAGE :- 220 ~ 250 V
• RATED CURRENT: 10A
• MAX WORKING PRESSURE 5 BAR
• MAX WORKING TEMPRATURE: 55c
• INSULATION : IP44
• HIGH PRECISION
• HIGH SENSIVITY
• CONNECTION : 1/4"
• ADJUSTABLE PRESSURE RANGE 1.4 ~ 5 BAR manually
• FUNCTION: MAKES PUMP AUTO ON / OFF.
•  INSTALATION : CONNECT WITH WATER PUMP AND CONNECT WITH WATER SUPPLY LINE

LEO Pressure switch is designed for a minimum of 1.4 Bar and a maximum of 5 Bar . So in this example when the pressure in the system drops to 1.4 Bar, the switch activates and lets more water flow into the system. At 5 Bar, the switch turns off.
