Product details of

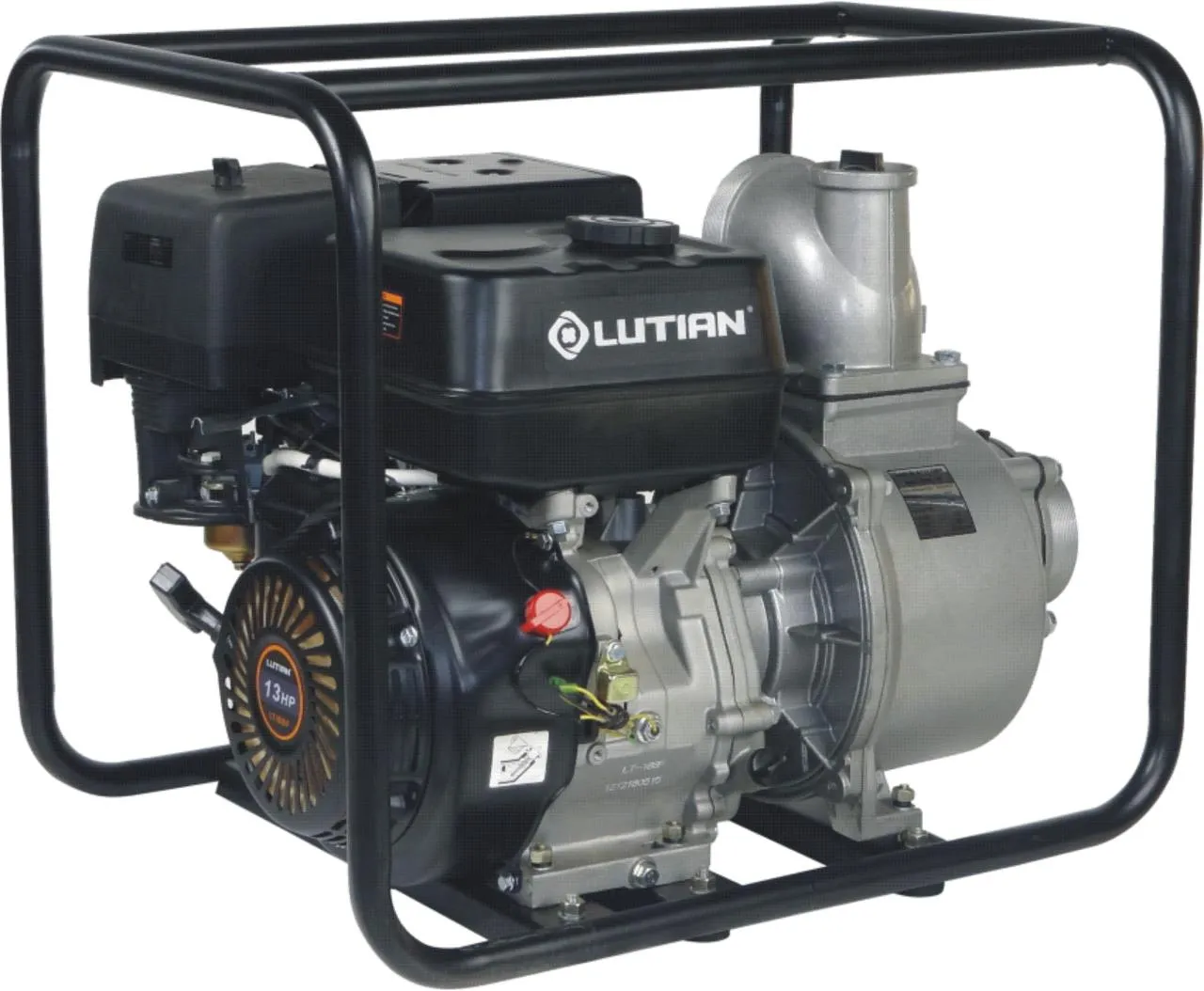

Genuine LUTIAN branded Water Pump
Petrol Engine Driven, Self Priming Pump
Model: LT30CX
Colour: Black Engine, Black Tank, Silver Pump
Suction n Discharge Port Diameter: 3 inch (80 mm)
Max. Flow: 60 m3/hr. (1000 litres/min)
Max. Head Lift: 28 meter
Max. Suction Head: 8 meter
Self Suction Time: about 180 sec.
Fuel Tank: 3.6 Litres
Starting System: Recoil Rope Start
196cc Gasoline (Petrol) Engine
3600 rpm Max. Engine Speed
Oil Capacity: 0.6 litres
Speed can be controlled through a lever
Strong International Standard Coloured Carton.

LUTIAN GENUINE 3 x 3 ENGINE PUMP

LUTIAN is one of the top quality brand of Generators & Water pumps, etc. It can easily be used for many purposes like Dewatering in Rain, Dewatering in Construction, Irrigation, various Water Transfer etc. uses.

LUTIAN High Performance engine driven Water Pump is a good investment for long run. The single outlet pump has one large 3-inch for pumping large volume of water when required.

LUTIAN Power is a comprehensive line of professional duty power equipment designed with a focus on premium quality and outstanding value. LUTIAN Power prides itself in standing behind all LUTIAN products with proven performance and unmatched value. LUTIAN power equipment will keep you running. All LUTIAN engines are Industrial Grade and feature cast iron sleeves, automotive grade rods, pistons, rings, crankshafts, valve and valve springs. The LUTIAN Overhead Valve (OHV) design provides better fuel efficiency, quieter operation, and longer life.

LUTIAN is one of the worlds biggest engine manufacturers. They have a reputation for high quality at a very competitive price. When customers replace their original Honda with one of these it is very rare that they switch back.

LUTIAN is a supplier of engines for a large number of firms producing agricultural equipment and small motor transport, etc.

ABOUT THIS ENGINE PUMP:

1. LUTIAN OHV 196cc engine is used. This engine is easy to start, reliable and durable with lower operating temperature, higher fuel efficiency and cleaner emissions. In addition, it has an oil protector for low level.

2. The lightweight and corrosion-resistant aluminum alloy impeller and double aluminum alloy structure can achieve the balance and maximization of flow and lift.

3. The pump body is manufactured with lightweight and solid aluminum alloy.

4. The efficient impeller of excellent performance ensures a water supply of long-distance and large flow.

5. The mechanical seal with high-quality ceramic is extremely critical for water pump.

6. Full frame protection ensures that water pump has extraordinary performance under the most adverse condition.

7. The maximum lift is up to 23m and the maximum sucking length up to 7m.

8. This product is ideal for liquid with mild corrosion (such as seawater and dilute saline) and cities, towns, enterprises, culture relic protection sites, property management offices, warehouses, mine areas, oil depots, stations, docks, ports, ships, temples, goods yards, forestry, mariculture, fire brigade and other organizations. Meanwhile, it is ideal equipment for draining flooded fields, drought resisting, rinsing, tall building water supply and other emergency rescues.

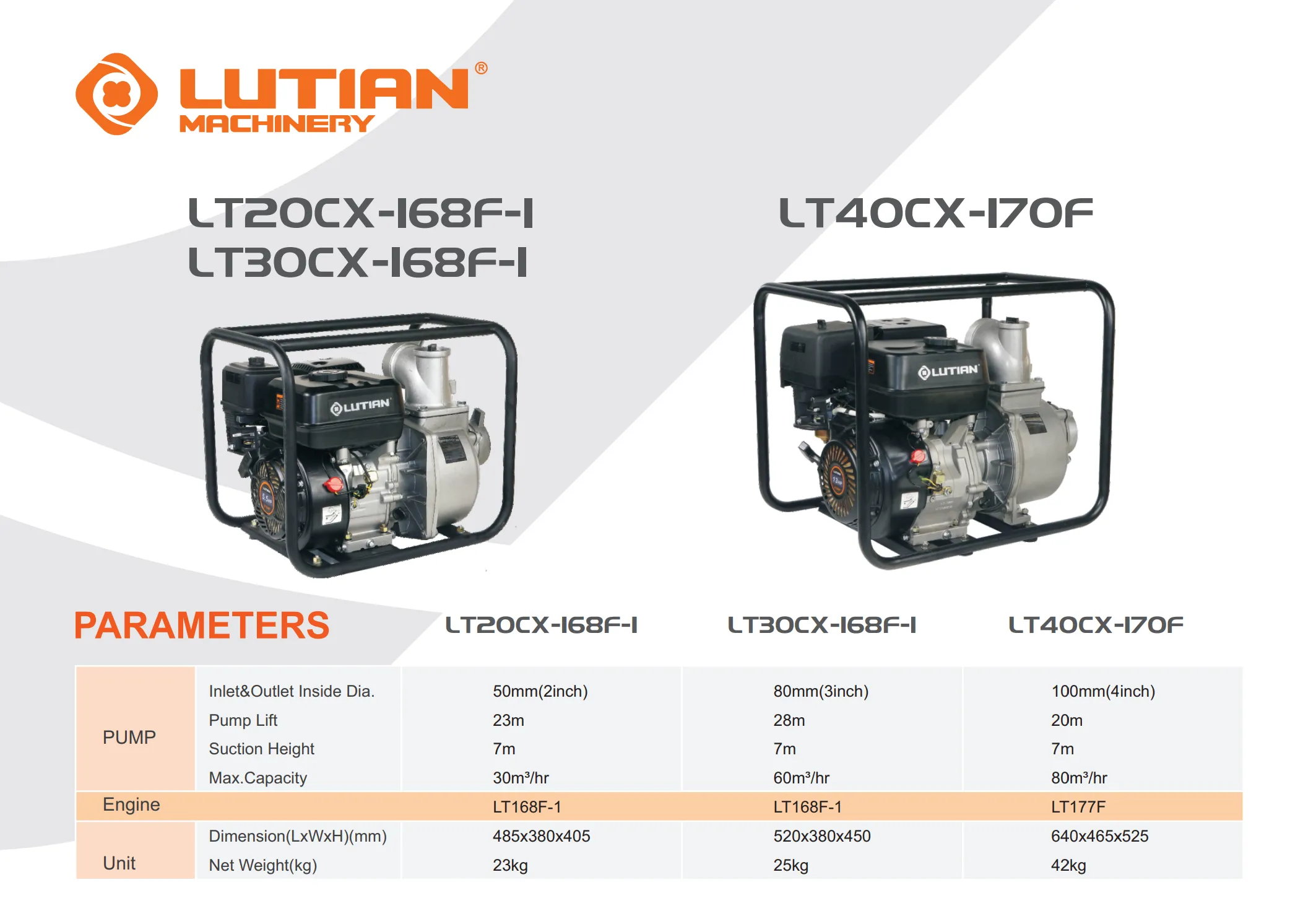

SPECS:

• SET MODEL: LT30CX

• Engine Model: GX168F-1

• Displacement: 196 cc

• Bore x Stroke: 68mm x 54mm

• Compression ratio: 8.5:1

• Net power: 4.3 kW / 3600 rpm

  Max Power: 4.8 kW / 3600 rpm

• Rated speed: 3600 rpm

• Oil capacity: 0.6 L

• Fuel tank capacity: 3.6 L

• Pump type: Centrifugal, Self Priming

• Dia. of discharge port: 3 inch (80 mm)

• Dia. of suction port: 3 inch (80 mm)

• Max suction: 7 m

• Max lift: 28 m

• Max delivery capacity: 60 m3/hr.

• Dimensions: 520 x 380 x 450 mm
